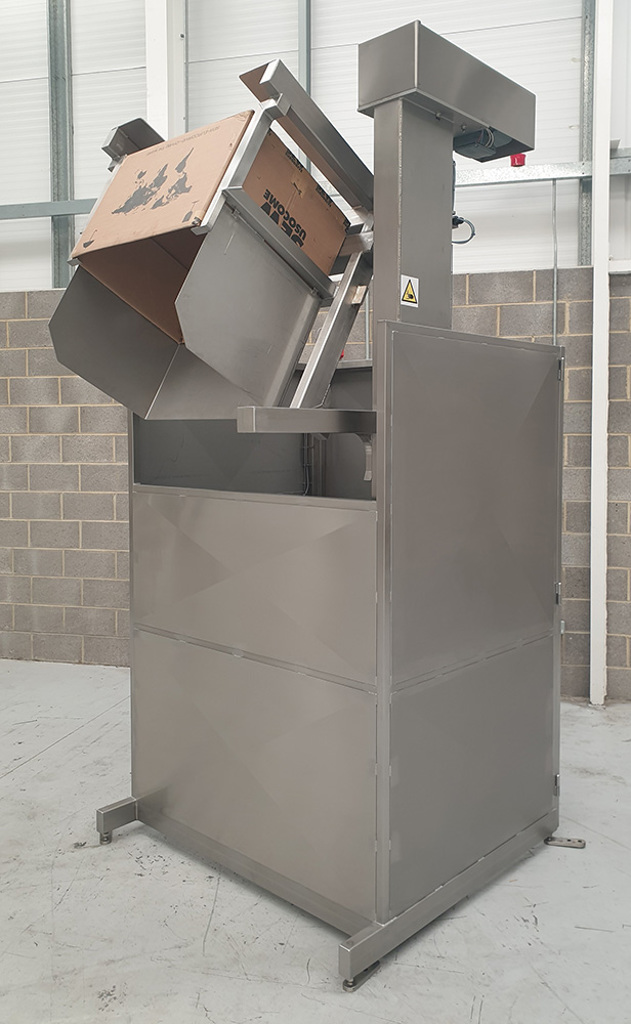

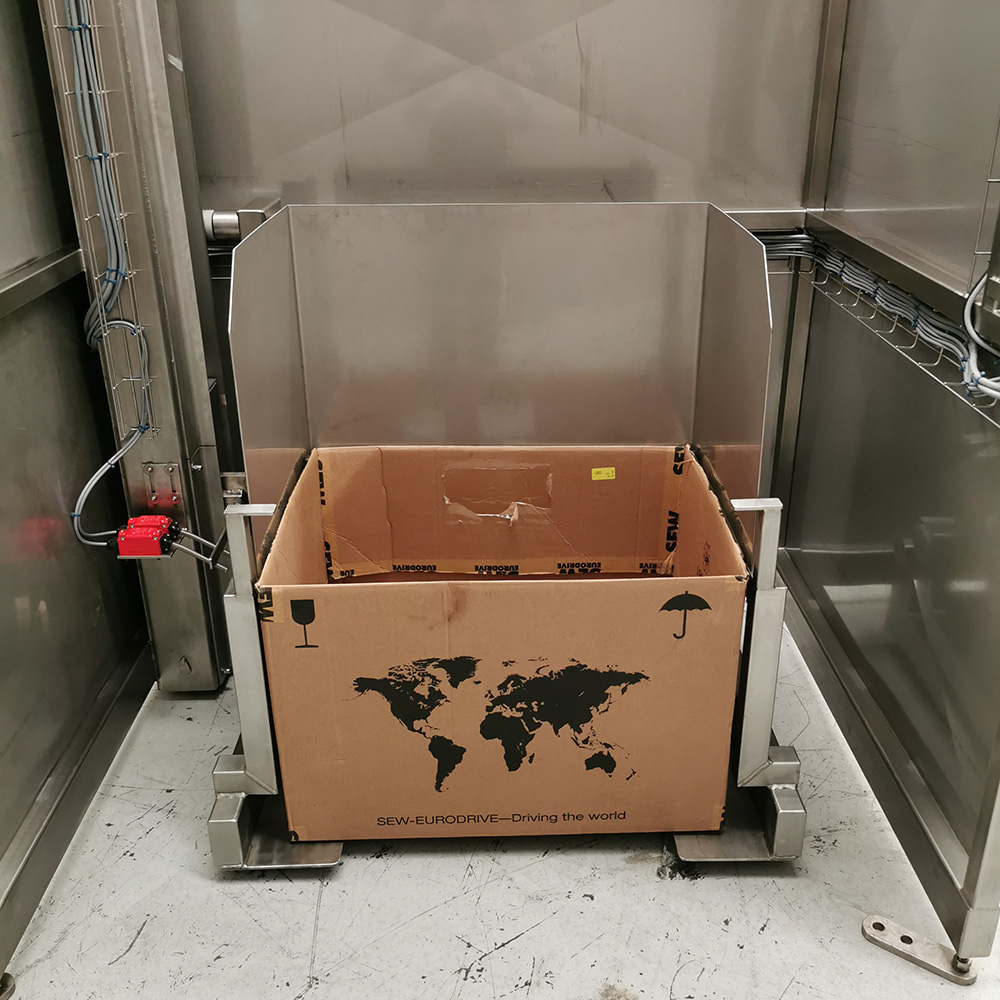

BTM/400/1850/B/G Single Pillar Stillage TipperThis Single Pillar Stillage Tipper is designed to lift and tip at a discharge height of 1850mm. The Stillage Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. The parts in the Stillage were discharged into a hopper mounted above a feeder conveyor. Safety Guard to BS EN 14120:2015 Safety of Machinery GuardsThis Single Pillar Stillage Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Stillage Tipper Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked
|
